CA-2000 VOLUMETRIC INFUSION PUMP

  • Great multi-therapy infusion platform ideal for emergency treatment and ambulatory care
  • General IV infusion
  • Antibiotherapy
  • Enteral infusion
  • Parenteral nutrition
  • Blood transfusion
  • Other continuous Infusion Therapies
  • Infusion Rate Range: 0.1-1200 ml/h (or up to 200 drops/min)
  • Infusion Modes: ml/h | drop/min | volume/time | patient/weight
  • Volume to be Infused: 1 - 9999 ml
  • Bolus Rate Range: 1 - 1200 ml/h
  • Bolus Volume: 1 - 9999 ml
  • Accuracy: ± 2% on the pump only (± 5% with I.V set)
  • Occlusion Sensitivity Adjustment: High, Medium, Low, Lowest | 5.8 psi ~23.2 psi
  • KVO (Keep Vein Open): Automatically switches to KVO rate (from 0.1 to 3 ml/h) at the end of infusion process
  • Built-in Infusion Rates Memory: 10 preset infusion modes memories
  • Alarm Volume: High, Medium, Low
  • Alarms:
    Door open
    Start reminder
    Occlusion (up & down)
    Power source change
    Infusion completed
    IV set disengaged
    Empty bag
    Initialization error
    Drive mechanism error
    Battery low/Battery depleted
  • Battery: Built-in rechargeable NiMH battery
    Pump will operate 8 hours min. at 25 ml/h with fully charged battery
  • Battery Charge Time: 6 hours
  • Dimensions: 105 (W) x 172 (D) x 240 (H) mm
  • Net Weight: 2.9 kg / 6.4 lbs (battery included)

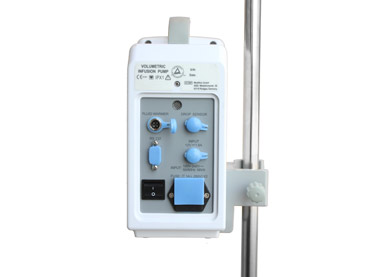

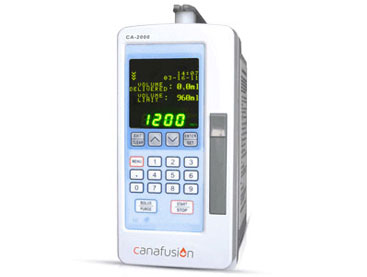

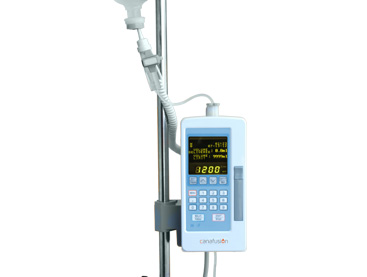

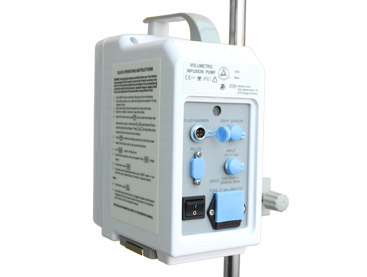

Volumetric Infusion Pump 1Volumetric Infusion Pump 2 Volumetric Infusion Pump 3 Volumetric Infusion Pump 4
  • Volumetric Infusion Pump Thumbnail 1

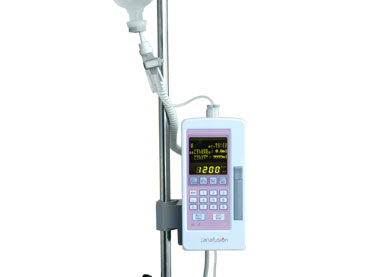

  • Volumetric Infusion Pump Thumbnail 2
